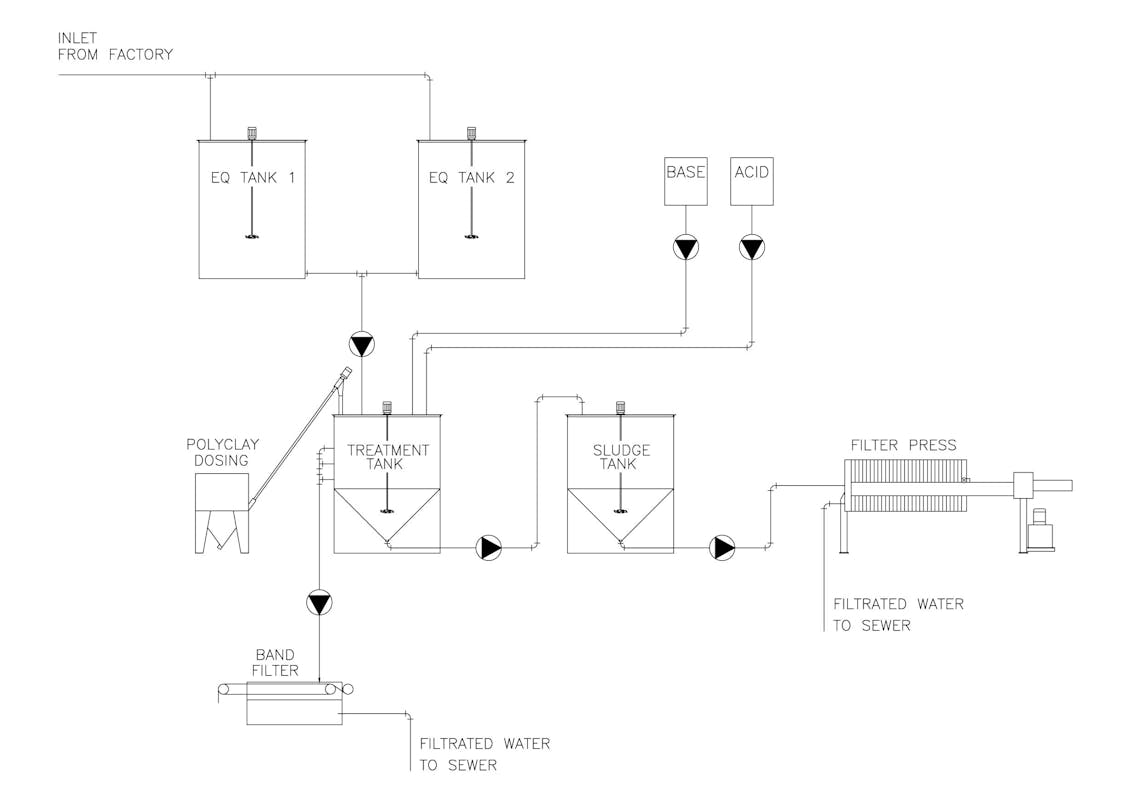

System Components
Equalisation Tanks
The Equalisation Tank volume is based on the system throughput capacity, with mixers installed to keep solids in suspension.
Treatment Tanks

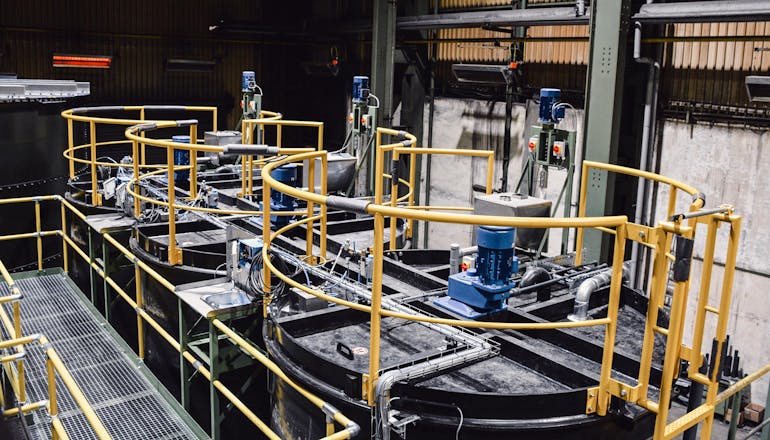

Treatment Tanks are designed with a conical bottom and baffles. Decant connections are located on the straight side of the tank. Mixers are installed in the tanks, mounted on an integrated support bridge.
Polyclay® Dosing Feeder
Various feeder sizes are available ranging from 150 litres up to 1000 litres suitable for bulk bags. The use of load cells improves dosing accuracy.
Mixers
Mixers used on all CPS systems have been selected to provide optimum process results during the addition of PolyClay® into the Treatment Tank and for solids suspension in the Equalization Tank.
Sludge Tanks
Sludge Tanks are used for holding sludge from the Treatment Tank to enable batches to be processed in the Treatment Tank independently of the Filter Press operation cycle.
Filter Press & Band Filter
Either dewatering device or even a combination can be selected depending on the volume and type of sludge.
Control Panel
The CPS system can be operated in manual or manual/automatic mode. Control panels designed to meet specific site requirements can also be supplied.
Options
Since the CPS system is custom designed, options can be added to handle specific treatment requirements.
