Suitable for mid volume wastewater treatment (1.5m³ to 10m³ per day)

  • Up to 1500 litre per batch wastewater treatment capacity
  • Easy to operate, no highly skilled operators required.
Download PDF Brochure
  • You can request a trial for this system
  • Available for worldwide delivery

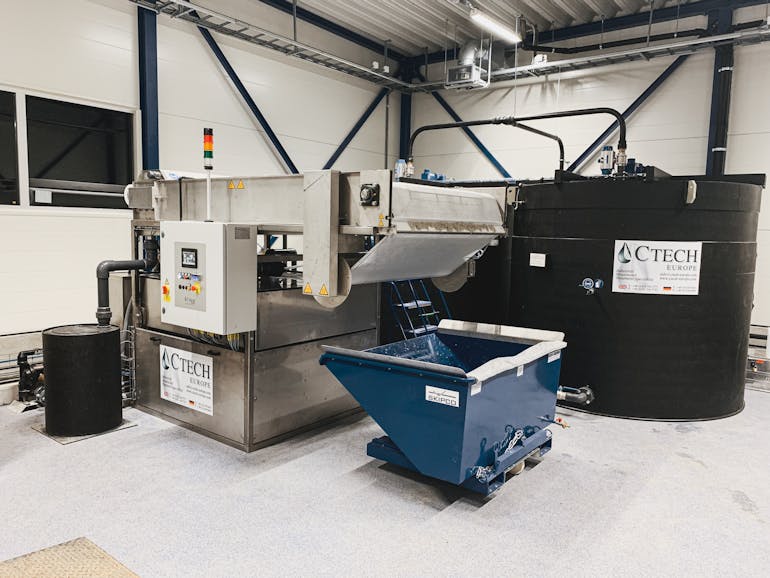

System Description

Wastewater Treatment Systems use our PolyClay technology to clarify spent solutions, emulsions and industrial effluent. The CBS treatment system provides batch treatment process to meet specific waste removal needs, reduce labour cost, and minimise space needed for placement. Standard systems have a throughput capacity of up to 3 m³ per hour, with treatment tank sizes ranging from 350 litres to 1500 litres for optimum efficiency and economy.

CBS systems are manufactured in Stainless Steel and Polyethylene. The CBS system can be provided as a manual or automated system.

Key Facts:

  • System produces 20 to 35 percent dry solids cake on average.
  • Treated water and sludge is run through a band filter assembly for maximum quality.
  • All controls are centrally located for ease of operation. Complete manual overrides.
  • Materials used for the equipment are chosen for its durability: HDPE or Stainless Steel for the tank and Stainless Steel for the band filter.
  • Optional automation of the batch via PLC

System Components

Treatment Tank

Treatment tanks are of conical- shape design with decant connections located on the bottom side of the tank. Mixers are installed in the tanks, mounted on a support bridge.

Polyclay Dosing Filter

Feeders are available with a 45 litre hopper  for  manual  filling  using  25 kg bags of PolyClay.

Mixers

On all CBS systems, mixers have been selected to provide optimum mixing during the addition of PolyClay chemicals and during the treatment process.

Bandfilter Unit

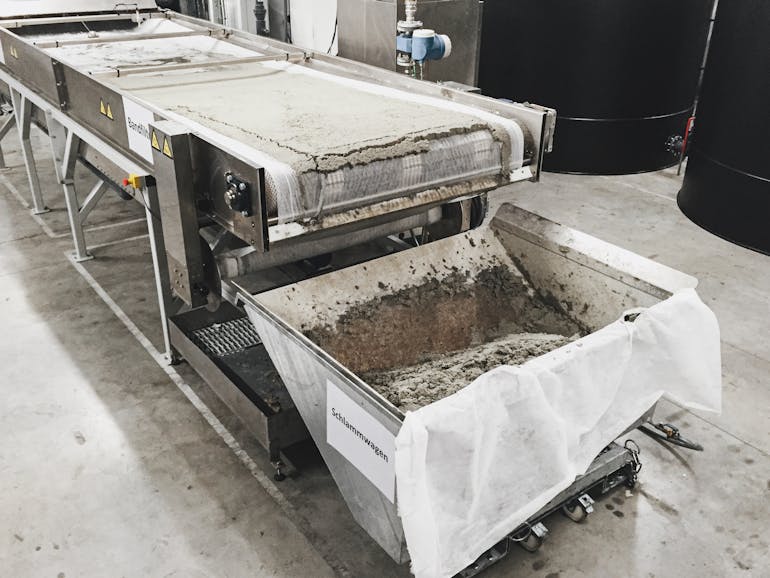

A trough shaped bandfilter of stainless steel wire mesh that permits dewatering of sludge from the treatment tank. The band filter is driven by a geared electric motor regulated by a level control switch.

Collection Tank

Located beneath the band filter and equipped with a 2½” discharge line for gravity feed to the sewer.

Control Panel

The CBS system can be operated in manual or manual/automatic mode, control panels to meet specific site requirements can also be supplied. Manual control panels are supplied with pushbuttons and manually set timers. Automatic/ Manual control panels are supplied with a manual/automatic selector switch push buttons. In the automatic mode the treatment process is automatically executed.

Standard Models Available

 Model

Batch Size

Standard band filter dimension

(length x width)

Maximum capacity per hour

(depending on type of sludge)
CBS 350

350 Litres

2000 x 700 mm

350 - 700 Litres
CBS 750

750 Litres

2000 x 1000 mm

750 - 1500 Litres
CBS 1500

1500 Litres

3000 x 1500 mm

1500 - 3000 Litres

The Process

How The CBS Bandfilter Works

  1. Step One

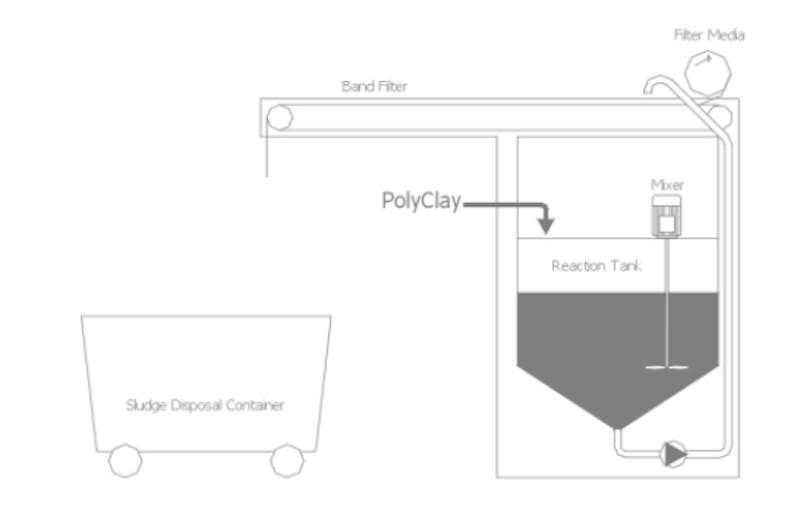

    The Reaction Vessel is filled with Wastewater

    After filling, the mixer is started and the PolyClay® Reactive separating agent is added to the mixing wastewater. During this time, a large floc can be observed forming in the water. The mixing continues for 5 - 10 minutes. The mixer is then stopped, and the floc is allowed to settle. After 5 minutes of settling, the mixer is turned on again shortly. The treatment process is than finished.

  2. Step Two

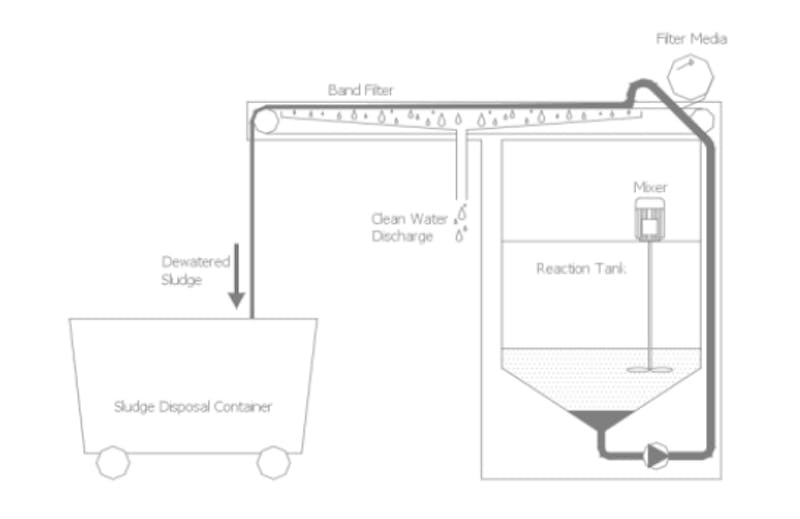

    The treated, clean water and the sludge is then pumped onto the filter media where it dewaters by gravity.

    A level detection determines when the sludge builds up too high on the filter media and automatically advances the filter media to ensure even dewatering. The sludge and filter media then fall into a disposal container.
